Features:
• Professional low-lying fog machine with road case and heavy-duty casters
• Locking tank with motorized dry ice basket system
• Massive fog output of 550 Sq M / 5920 Sq ft.
• Dual element heating system
• 4-section electronic temperature control system
• Average run time: 5 minutes
• Requires dry ice and water
• Water Level Sensor: pump automatically turns off when water is too low
• Dry ice consumption: 12 kg/ 3.5 min
• On-board LED display with 6 button control
• Water drain valve: recessed for protection located lower-front of case
• 10-hour holding time of cooler box
Control:
• Operating Modes: 3
• Operating Modes: built-in timer, manual, or DMX control
• DMX Channel Modes: 3
• DMX Channels: 1 Ch, 2 Ch, or 6 Ch
Connections:
• DMX Input/Output: 3- pin & 5-pin
• Power Inputs: 2x powerCON
Thermal:
• Max Ambient Temperature: 104 ℉ | 40 ℃
• Max Surface Temperature: 140 ℉ | 60 ℃
• Max Water Temperature: 80., 75., 70., 65.
• Initial heat time: 90 min @ 120V/ 45 min @ 230V
Electrical:
• Power Voltage: 120V~230VAC / 50/60Hz (non-switchable)
• Dual Element Heating System: 2x 1450 Watts @ 120V/ 2x 3000 Watts @230V
• Power Consumption: (full) 3000 Watts @120V/ 6100 Watts @ 230V
Physical:
• Dimensions without case + wheels: 21.5” x 18.25” x 24.25” | 543 x 460 x 617 mm
• Dimensions with case + wheels: 21.38” x 18.11” x 24.9” | 543 x 460 x 632 mm
• Weight: (with wheels no case cover): 72.8 lbs. | 33 kg.
• Weight: (with case cover + wheels): 93.7 lbs. | 42.5 kg
• Water Tank Capacity: 8.5 gal. | 32 Liters
• Dry Ice Basket Capacity: 26.5 lbs. | 12 kg.
Included Items:

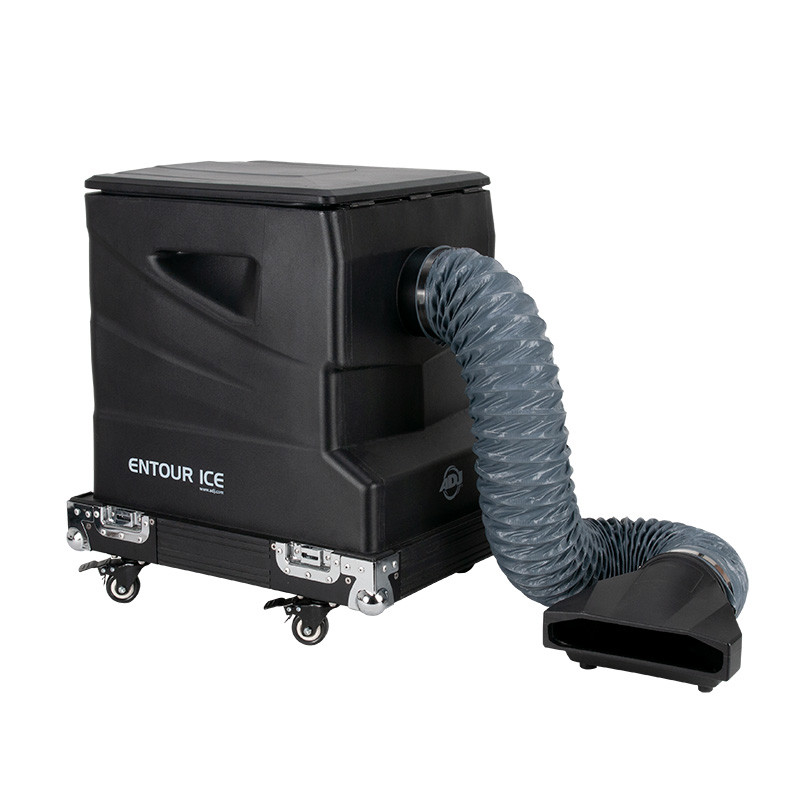

• Entour Ice Machine with heavy-duty casters

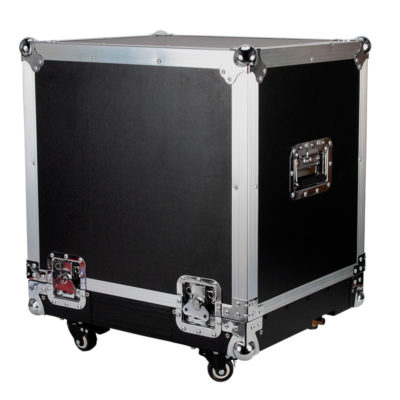

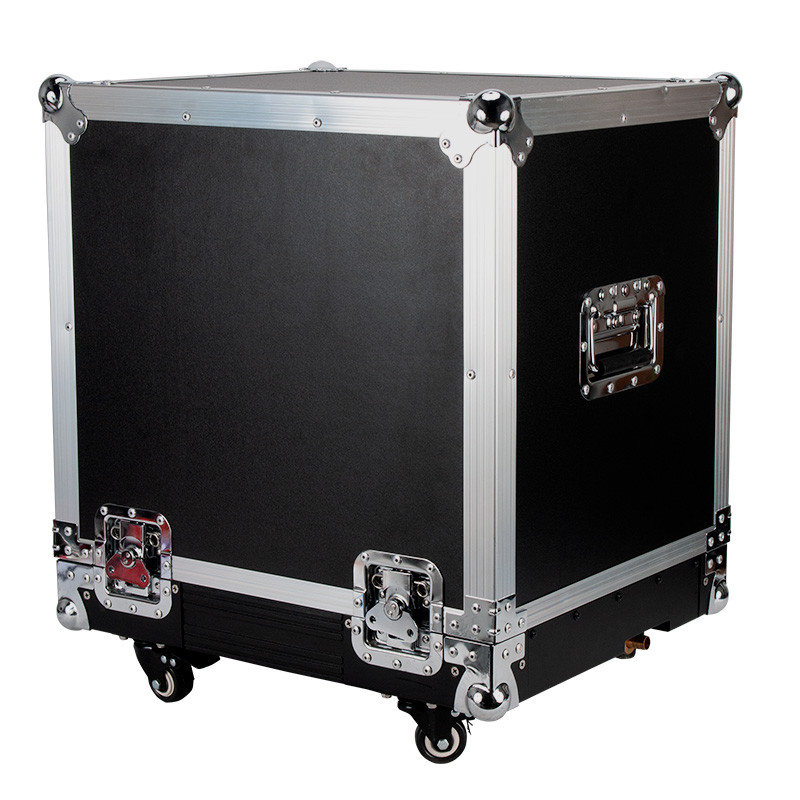

• Tour-grade flight case cover
• 5 ft. (1.5m) Fog conduction hose with clamps
• 2x powerCON to Edison power cables
• Product manual
• Two-year (730 days) warranty
