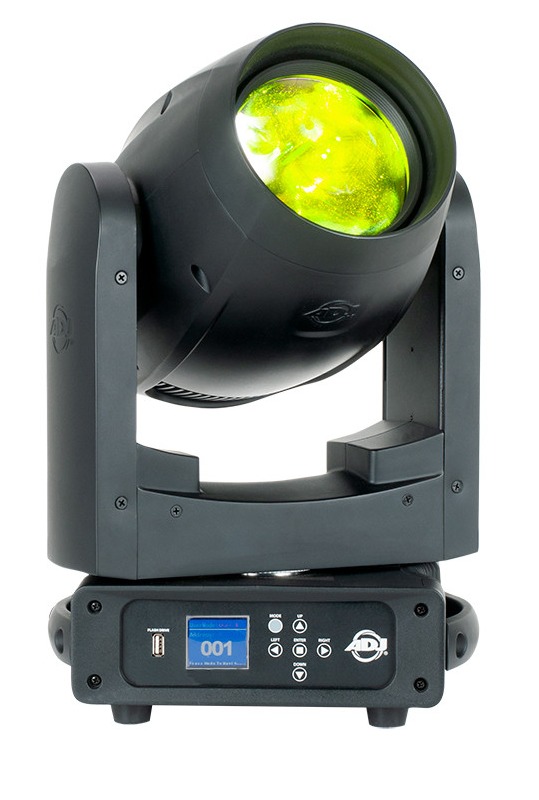

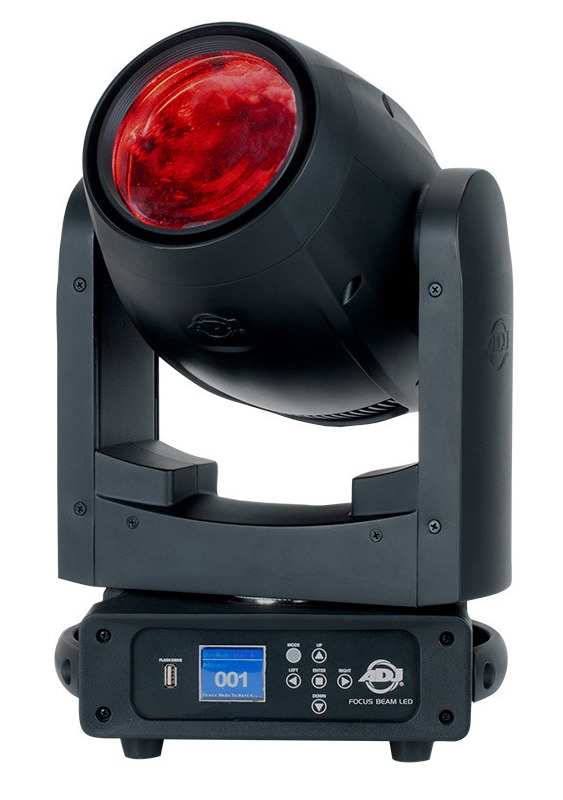

The Focus Beam LED, a complimentary fixture to the other Focus Series moving heads, uses a powerful 80W LED engine to produce a powerful, 7400K, 2.5-degree beam from an advanced optical system. This fixture features motorized focus, two prism effects (rotatable 8-facet Circular and rotatable 6-facet Linear), and it has a built-in in frost filter for wash effects.
There are a variety of control options on the Focus Beam LED such as: DMX & RDM protocol, a variety of dimming modes, fine pan and fine tilt options, and adjustable gamma and LED refresh rate settings. There is an on-board function display with 5 touch buttons making it easy to dial in custom settings.
The Focus Beam LED offers 13 dichroic colors plus white, and has 15 fixed GOBOs plus open and a GOBO shake effect.
There is a convenient USB port on the rear panel used to update firmware. The fixture has locking Seetronic In/Out connections to daisy chain power, and 3-pin DMX In/Out to link data. The fixture is compact and lightweight suitable for fixed installations or temporary, mobile event applications.
Specifications
Light Source:
• 80W Cool White LED Engine
• 2.5° Beam Angle
• Color Temperature: 7400K
• 50,000 Hour Average LED Life
Features:
• Control Protocol: DMX & RDM
• DMX Modes: 2 (16 & 18)
• Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• Dim Speed control (0.1~10 Seconds)
• Dimming: 0 – 100%
• Strobe & pulse control
• Motorized Focus
• Linear Frost 0-100% (Wash effect)
• 2 Prisms: 6 & 8 Facet, Indexable and Rotatable
• USB firmware update port
• Adjustable LED Refresh Rates (900~25k Hz)
• Adjustable Gamma Settings (1.0-2.8)
• With Wired Digital Communication Network
• Display: Touch display with 5-button touch menu
Color Wheel:
• 13 dichroic colors + white
GOBO Wheel:

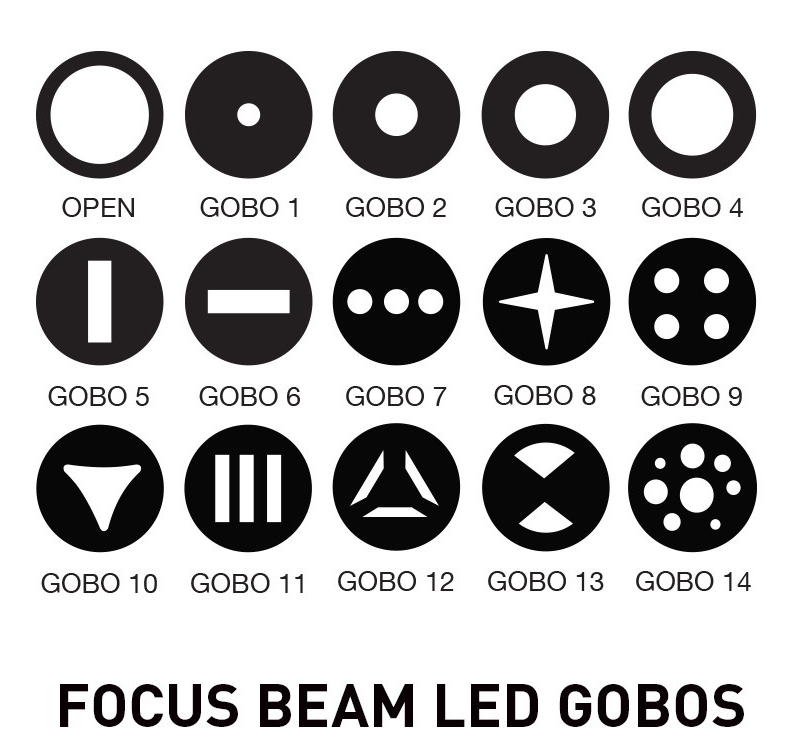

• Metal wheel with 15 fixed GOBOs + Open
• GOBO shake effect
Prism Wheel:
• Prism Wheel 1: Rotatable 8-facet Circular
• Prism Wheel 2: Rotatable 6-facet Linear
• Prism Indexing with overlay feature
Control:
• Control Modes: DMX512, RDM & Stand Alone Internal Programs
• 2 DMX Channel Modes: 16 & 18 channels
• 16-Bit Pan, Tilt & Dimmer control

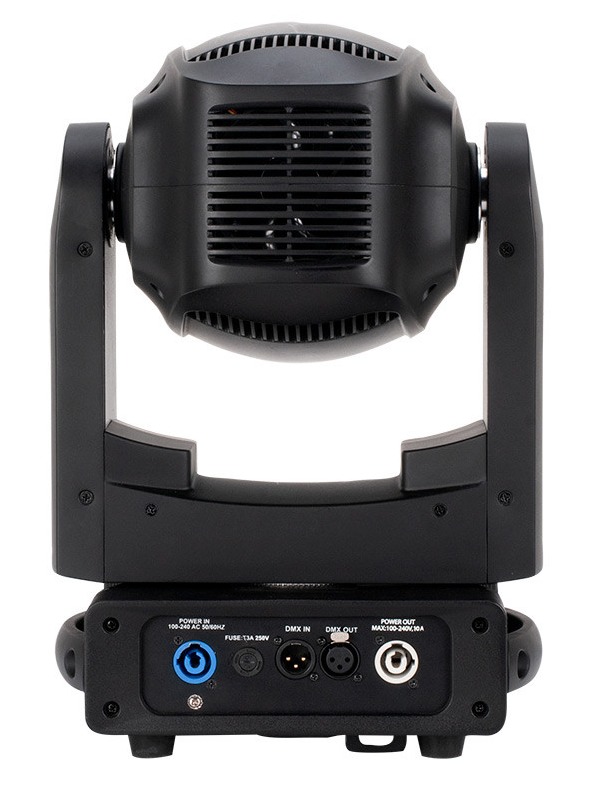

Connections:
• DMX Connections: 3-pin Locking XLR In & Out
• Power Connections: Seetronic Locking Power In & Out
Pan/Tilt:
• Pan & Pan Fine: 630 degrees
• Tilt & Tilt Fine: 270 degrees
Electrical:
• Multi-voltage operation: AC 100-240V, 50-60Hz (Auto Sensing)
• Maximum Power Consumption: 136W @ 120V
• Daisy chain: 15 units @ 120V; 30 units @ 230V
Dimensions & Weight:
• Dimensions (LxWxH): 10.96″ x 6.85″ x 17.61″ / 278x174x447mm
• Weight: 27 lbs. (12.25 kg)

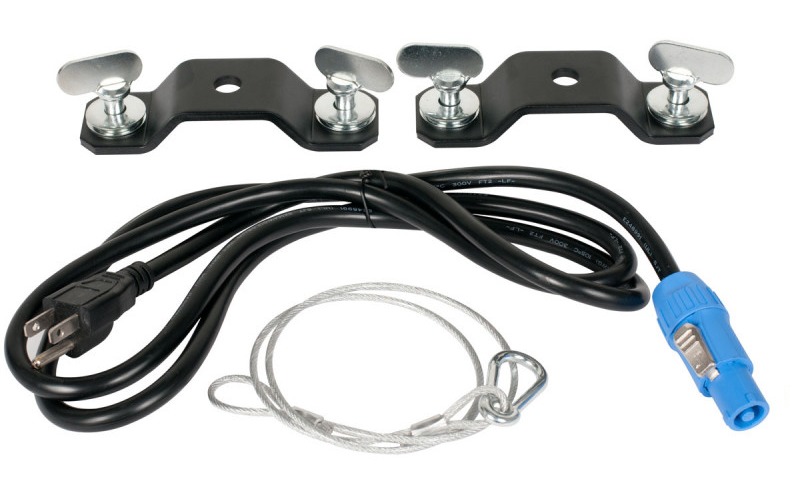

What’s Included:
• 2x Omega Brackets
• 1x Seetronic Power Locking Power Cable
