Description
Specifications
FEATURES:
• Individual volume controls on each channel
• On/Off power switch

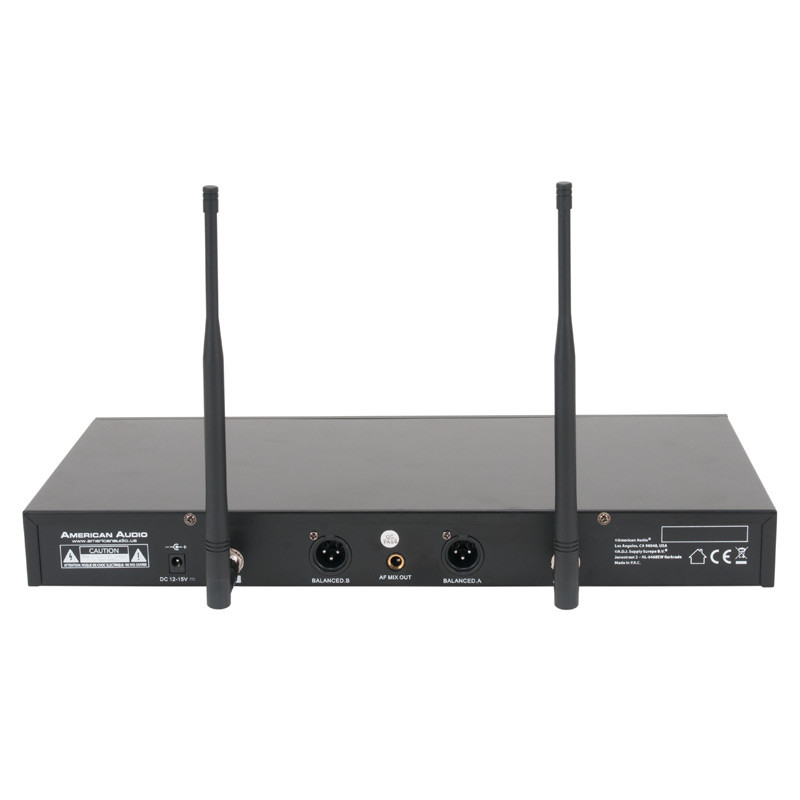

• 2 Individual 3-pin XLR balanced microphone outputs
+ One 1/4-inch mixed output
• 2 removable antennas and extension cables for
front mounting
• Rugged 1RU Metal Receiver Chassis
• Quartz Controlled Fixed Frequency
WHAT’S INSIDE:

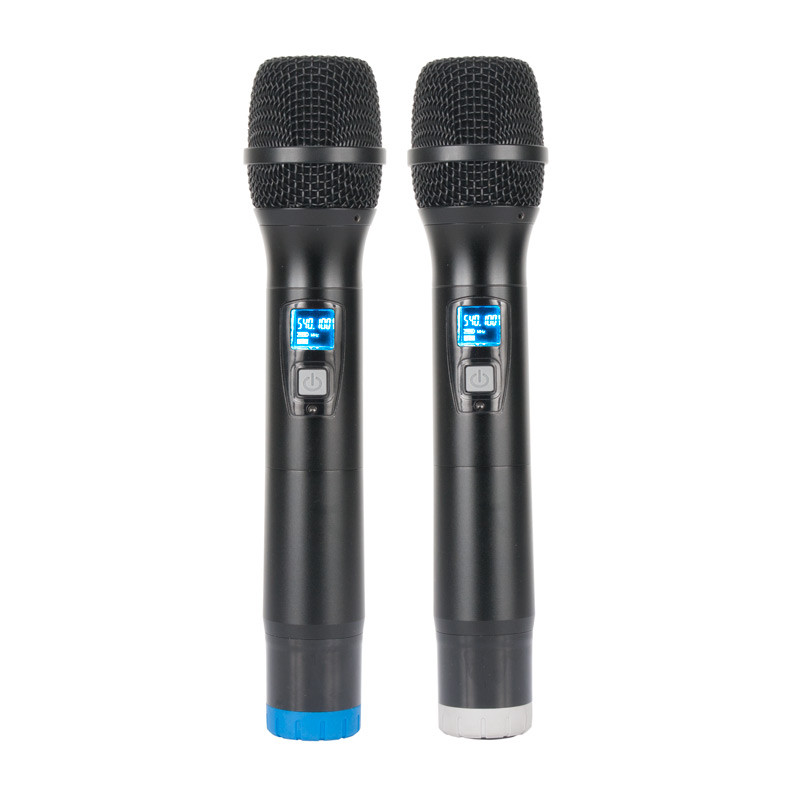

• 2x Hand Held Wireless Microphones (AA batteries
not included)
• 2x Microphone Colored Rings
• 1x 2-Channel UHF Wireless Receiver
• 2x Detachable UHF Antennas
• 1x Power Cable
• 2x Rack Ears to mount in 19-inch rack mount

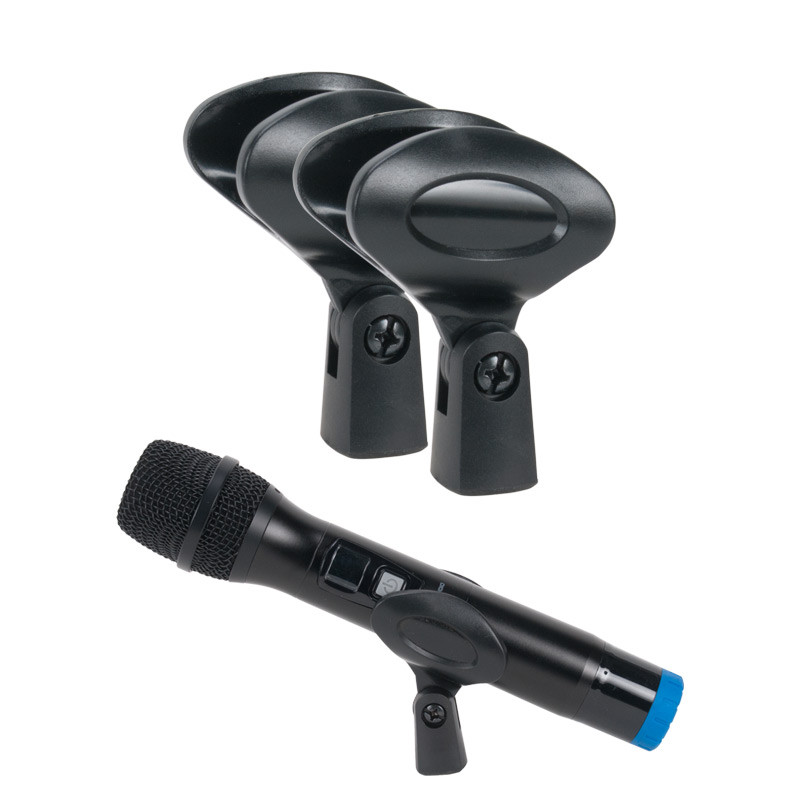

• 2x Microphone clips
PERFORMANCE:
• Wireless Range: 300 ft. (90M) line of site*
• Battery life with full charge: 6-10 hours
• Frequency Range: UHF 540-590MHz
• Dynamic Range: >98dB
• Total Harmonic Distortion: <1%
• Frequency Response: 50HZ ~ 14KHz 3dB
• Signal to Noise Ratio: >85dB
• Audio Output Level: 0-300mV (Balanced: 0-2V)
• Transmitting Power: +10sBM
*Actual wireless range will depend on RF signal absorption
and interference
DIMENSIONS / WEIGHT:
• Receiver Dimensions (LxWxH): 16.5”x9”x1.75” / 420x230x45mm
• Receiver Weight: 1.5 lbs. / .68k
