Description

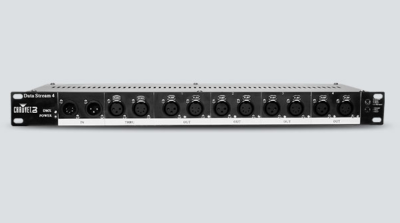

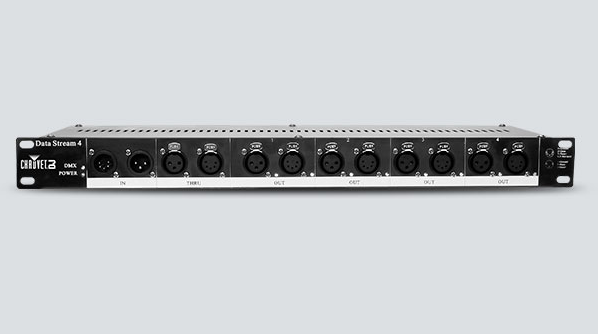

Chauvet Data Stream 4
- Universal, optical DMX splitter provides 4 outputs from a single input
- Increase flexibility with 3- and 5-pin XLR connections for each input/output
- Increase operation with additional 3- and 5-pin output for linking other Data Stream 4 units
- Electrical isolation between input and output
- Conveniently mount with a shorter cable run using the single space (1U) mounting rack
-
Specifications
- DMX Channels: 3- and 5-pin
- Input Voltage: Auto-ranging 100 – 240VAC 50/60Hz
- Power and Current: 3W, 0.1A @ 120V 60Hz
5W, 0.1A @ 230V 50Hz - Weight: 5.8 lb (2.6 kg)
- Size: 19 x 5.3 x 1.8 in (483 x 134 x 46 mm)
- Approvals: CE
